Hinge bracket

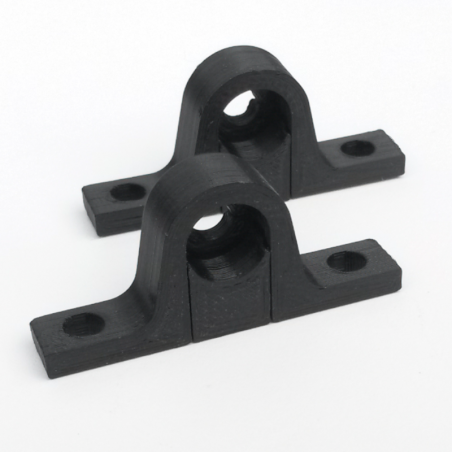

If the hinge bracket of the window stay of your vintage caravan z.B. has been damaged by a break-in, this is particularly annoying, as original parts in good condition are hard to come by and replacement parts often do not fit. Restore the original window stay of your vintage caravan with the "replacement hinge bracket" without having to drill out the rivet. Thanks to the clever 2-part solution, the hinge bracket can be built around the rivet. Simply place the bracket around the rivet and clip in the center piece. The hinge bracket creates the connection between the window and the window stay. It is firmly attached to the window by means of a screw connection and rotatably attached to the window stay by means of a rivet. Suitable for many older caravan models z.B. for the Hymer Eriba Nova model.

The product advantages:

o Ingenious - Thanks to the clever 2-part solution, no drilling of the rivet is required

o Simple installation - the hinge bracket and the insert can be fitted around the rivet

o Repair instead of buying new

o Made in Germany

o Manufactured in a 3D printing process from durable ABS plastic.

o Color black

o High strength

o Very good light fastness

o Full filling density - no filling patterns to save material

Please check the usability based on the dimensions before purchasing:
Dimensions: W/D/H 43.5mm/8mm/20mm
Screw holes: Ø4mm Hole center distance 33mm
Rivet core hole: Ø4.7mm, rivet head hole Ø10mm / 5mm deep

Scope of delivery:

Set consisting of 2 pieces
