Rotary handle lock, keyed alike
€24.95
Tax included
Shipping excluded
Geliefert innerhalb 1 bis 2 Wochen
EURO-LOCKS twist lock / handle tray with lock suitable for locking workshop, archive, multi-purpose material and tool cabinets made of metal with sheet steel doors.
Product advantages:
- New
- Original spare part
- Branded goods
- Manufacturer: EURO-LOCKS
- Packed in a sturdy shipping bag
- Repair yourself instead of buying new
Variants:
The lock is availablein keyed alike and keyed different.
With keyed alike, all keys fit into all locks.
With keyed alike, 2 keys are always included with a lock
The keyed alike version is offered here.
The keyed alike version is available in another offer.
Product description:
This high-quality Euro-Locks twist lock / handle lock is ideal for locking workshop, archive, multi-purpose material and tool cabinets with sheet metal doors and/or flaps. The twist lock can be fitted quickly and easily using a latching lug. The latch does not need to be dismantled for this, but can simply be inserted through the lock hole in the assembled state.
The twist lock is made of plastic and has a metal locking cylinder which provides sufficient security with 7 locking plates. The twist lock can be dismantled by loosening the rear screw. When disassembled, the cylinder core can be pulled out and replaced. The lock has a 90° angle of rotation and is designed for doors hinged on the right (hinges on the right, lock on the left when viewed from the front).
The key can be removed both when the handle is locked and when it is open and therefore does not have to remain in the locking cylinder when it is open. The ring key and key can be stored on the back of the lock housing by inserting it into a notch provided directly on the lock.
Before purchasing, please check the usability based on the dimensions.
Technical data
Lock hole in door
- Base hole 84.1mm x 84.1mm
- Chamfer distance 72.1mm x 72.1mm
Housing dimensions 85mm x 85mm
Total depth 40mm
Installation depth outside of door - start of locking rod 17.4mm
Center distance of locking rod holder 35mm
Diameter of locking rod holder Ø5.2mm
Max. Diameter for hole in locking rod Ø5.5mm
Max. Max. thickness of locking rod eye 4.5mm
Fastening type latching lug
Number of keys 2 pieces
Locking type keyed alike
All dimensions are approximate.
Scope of delivery
- Handle lock 1 piece

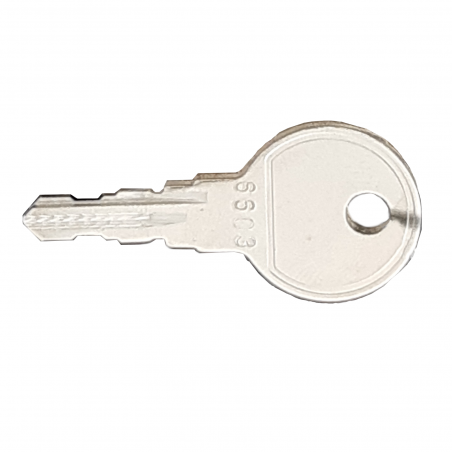

- Key 2 pieces
Additional keys areoptionally available.
EURO-LOCKS twist lock / handle tray with lock suitable for locking workshop, archive, multi-purpose material and tool cabinets made of metal with sheet steel doors.
