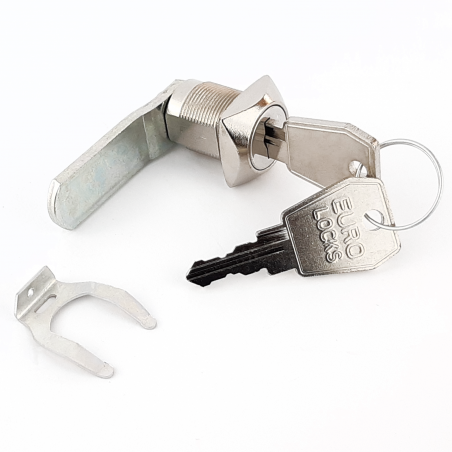

Lever lock Ø19.1x16.1 deep 20

The product benefits:
- New
- 2.000 secure locking combinations
- Suitable for changing users thanks to the locking function
- Branded goods
- Manufacturer: EURO-LOCKS
- Original spare part
- Very precise and high-quality workmanship
- Very smooth-running (z.B. insertion and removal of the key)
- Packed in a robust shipping bag
- Repair yourself instead of buying new

Product description:
This high-quality lever lock from Euro-Locks is ideal for locking lockers, wardrobes, workshop cabinets or other locking systems for doors and/or flaps made of steel, sheet metal or metal. The lever lock can be installed quickly and easily using a fork spring. The latch does not need to be removed for this, but can simply be inserted through the lock hole when installed. The lever lock is made of metal and has 7 locking plates, providing first-class security with 2,000 secure locking combinations. As it has a very precise and high-quality finish, all functions are very easy to operate. The high-quality workmanship is particularly noticeable when inserting and removing the key. The deadbolt can be replaced or rotated by 45° with a little manual skill. When the bolt is removed, the cylinder core can be pulled out and replaced. The latch has a 90° angle of rotation and is designed for doors hinged on the right (hinges on the right, latch on the left when viewed from the front). Thanks to the intelligent locking function, which prevents the key from being removed when the door is open, the lock is ideal for changing use as it prevents the user from taking the key with them and losing it. The lock body has an anti-rotation device which offers additional resistance to forced entry. As the anti-rotation device is more bulky than the sheet metal is usually thick, it is not possible to fasten the lock using a nut. The lock is therefore secured with a spring clip (included in the scope of delivery).

The deadbolt is slightly offset by 1.6 mm and can be rotated. This results in the following depth dimensions with a housing depth of 20.0mm:
21.6mm (20.0mm housing depth + 1.6mm bolt offset)
18.4mm (20.0mm housing depth - 1.6mm bolt offset)

Other bolt designs, locking circuits and master keys are available on request.

Please check before purchase:
- check the usability based on the dimensions
- check whether the lock hole is intended for a lock with anti-rotation protection


Technical data
Lock hole Ø19.1mm 16.1mm wide, anti-rotation protection 5mm wide x 21.1 high
Housing length 20mm
Bolt length (center pivot point - bolt end) 49mm
Bolt width 15,5mm
Deadbolt thickness 3.0mm
Deadbolt mounting on lock square 8mmx8mm
Deadbolt mounting on deadbolt square star 8mmx8mm
Deadbolt fastening screw M4x8
Mounting type fork spring
Number of keys 2 pieces
Key series K

Scope of delivery
- Lever lock with deadbolt 1 piece
- Key 2 pieces
- Fork spring 1 piece
