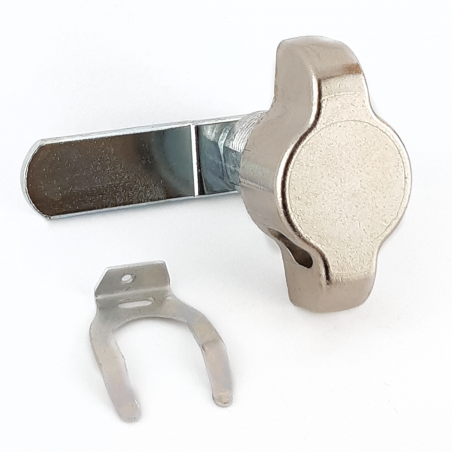

Twist lock Lever lock (sash lock) for padlock

The product advantages:
- New
- Suitable for padlocks
- Suitable for changing users
- Branded goods
- Manufacturer: EURO-LOCKS
- Original spare part
- Very precise and high-quality workmanship
- Very smooth-running
- Packed in a robust shipping bag
- Repair yourself instead of buying new

Product description:
This high-quality lever lock from Euro-Locks is ideal for locking lockers, wardrobes, workshop cabinets or other locking systems for doors and/or flaps made of steel, sheet metal or metal. The lever lock can be locked using a padlock (not included). The lever lock can be fitted quickly and easily using a fork spring. The bolt does not need to be removed for this, but can simply be inserted through the lock hole when fitted. The lever lock is made of metal. As it has a very precise and high-quality finish, all functions are very easy to operate. The bolt can be replaced or rotated by 90° with a little manual skill. The lock has a 90° angle of rotation and is designed for doors hinged on the right (hinges on the right, lock on the left when viewed from the front). The lock body has an anti-rotation device which provides additional resistance against forced entry. As the anti-rotation device is thicker than the sheet metal, it is not possible to fasten the lock using a nut. The lock is therefore secured with a spring clip (included in the scope of delivery).

The deadbolt is slightly offset by 1.0 mm and can be rotated. This results in the following depth dimensions for the housing depth of 20.0mm:
21.0mm (20.0mm housing depth + 1.0mm bolt offset)
19.0mm (20.0mm housing depth - 1.0mm bolt offset)

Other bolt designs are available on request.


Please check before purchase:
- check the usability based on the dimensions
- check whether the lock hole is intended for a lock with anti-rotation protection
- ensure the correct door hinge (right hinged)


Technical data
Lock hole Ø19.1mm 16.1mm wide, anti-rotation protection 5mm wide x 21,1 high
Housing length 20mm
Bolt length (center pivot point - bolt end) 48mm
Bolt width 15.5mm
Bolt thickness 3.0mm
Bolt receiver cross receiver Ø outside 10mm, Ø inside 8mm, web width 5mm
Bolt fastening Lock washer for shaft similar to DIN 6779
Mounting type fork spring


Scope of delivery
- Lever lock with bolt 1 piece
- Fork spring 1 piece
