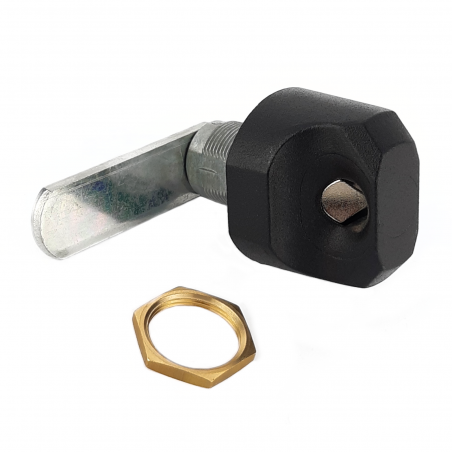

Metal security twist lock Lever lock (sash lock) for padlock

The product advantages:
- Increased burglary protection thanks to freewheel function
- Very stable
- Made entirely of metal
- High-quality feel
- Simple operation
- Easy to install
- New
- Suitable for padlocks
- Suitable for changing users
- Branded goods
- Manufacturer: BURG
- Original spare part
- Very precise and high-quality workmanship
- Very smooth-running
- Packed in a robust shipping bag

Product description:
This high-quality lever lock from BURG is made entirely of metal and is ideal for locking locker cabinets, wardrobes, workshop cupboards or other locking systems for doors and/or flaps made of steel, sheet metal or metal. The lever lock can be locked using a padlock (not included). It offers additional burglary protection compared to conventional padlocks, as the freewheel function means that it can no longer be forced open. The lever lock can be fitted quickly and easily using a nut. The bolt does not need to be removed for this, but can simply be inserted through the lock hole when fitted. The lever lock is made of metal. As it has a very precise and high-quality finish, all functions are very easy to operate. The bolt can be replaced or rotated by 90° with a little manual skill. The lock has a 180° angle of rotation and can therefore be used for doors and flaps hinged on the right or left. The lock is fastened with a nut (included in the scope of delivery).

Other bolt designs are available on request.


Please check the usability based on the dimensions before purchasing:



Technical data
For use with padlocks with a shackle diameter of 5mm to 8mm.
Lock hole Ø19.1mm 16.1mm wide
Housing length 20.0mm
Bolt length (center pivot point - bolt end) 48mm
Bolt width 15.5mm
Bolt thickness 3.0mm
Bolt receiver cross receiver Ø outside 10mm, Ø inside 8mm, Bar width 5mm
Bolt fastening Pan head screw with collar M6x12 Torx T30 (similar to ISO 7380)
Fastening type Nut M19x1


Scope of delivery
- Lever lock with bolt 1 piece
- Nut M19x1 1 piece
