Locking tongue for twist lock Lever lock (sash lock)

Product advantages:
- New
- Branded goods
- Manufacturer: BURG
- Original spare part
- Packed in a sturdy shipping bag

Product description:

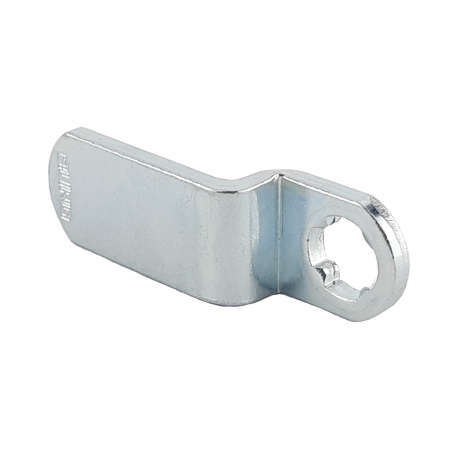

This locking tongue (latch) from Burg is suitable for various twist locks (see image), which are available in a further range and are ideal for locking locker cabinets or other locking systems for doors and/or flaps made of steel, sheet metal or metal. The locking tongue can be exchanged or rotated by 90° with a little manual skill.

The locking tongue is offset by 8.3 mm and can be rotated. This results in the following possible combinations:

Lever lock, Schwietz Shop article no.: 000023:
- Housing depth of 20.0 mm
28.3 mm (20.0 mm housing depth + 8.3 mm cranked locking tongue)
11.7 mm (20.0 mm housing depth - 8.3 mm cranked locking tongue)

Security lever lock, Schwietz Shop article no.: 000024:
- Housing depth of 21.5 mm
29.8 mm (21.5 mm housing depth + 8.3 mm locking tongue offset)
13.2 mm (21.5 mm housing depth - 8.3 mm locking tongue offset)

Security lever lock, Schwietz Shop article no.: 000025
- Housing depth of 20.0 mm
28.3 mm (20.0 mm housing depth + 8.3 mm locking tongue offset)
11.7 mm (20.0 mm housing depth - 8.3 mm locking tongue offset)

Other locking tongue designs are available on request.

Please check usability based on the dimensions before purchasing:
- check usability based on the dimensions

Technical data
Striker plate offset 8.3 mm
Striker plate length (center pivot point - latch end) 42mm
Striker plate width 16mm
Striker plate thickness 3.0mm
Striker plate mount Cross mount Ø outside 10mm, Ø inside 8mm, web width 5mm

Scope of delivery
- Striker plate 1 piece
