UNIQUE US-3750 B

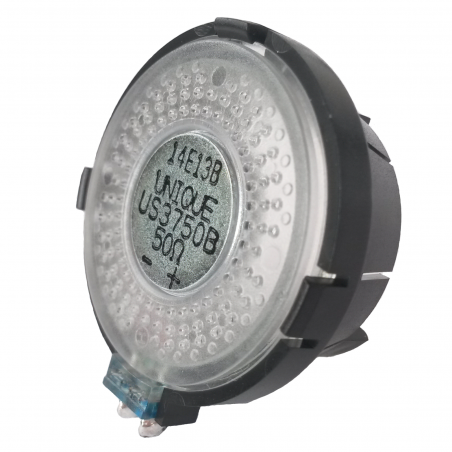

UNIQUE US-3750B Micro speaker for instrument cluster
Suitable for the following vehicle models:
- Audi A3 8P year 2003 - 2007
- Seat Altea 5P year 2004 - 2009
- Seat Ibiza 6L year 2002 - 2008
- Skoda Octavia 1U year 2000 - 2010
- VW Fox 5Z year. 2005 - 2011
- VW Golf 5 1K year 2003 - 2007
- VW Golf 6 5K year 2008 - 2012
- VW Golf 7 5G year 2012 - 2017
- VW Passat 3C year 2003 - 2007
- VW Polo 9N year 2001 - 2009
- VW Touran 1T year 2003 - 2007
- VW Transporter T5 7H year 2004 - 2010
Product advantages:
- New
- Original spare part
- Manufacturer: UNIQUE SOUND CO
- Item designation: US-3750B
- Packed in a sturdy cardboard box (no shipping bag)
- Repair yourself instead of cost-intensive workshop visits
Product description:
The light buzzer (loudspeaker) is a component of the instrument cluster (colloquially known as the speedometer) and provides a warning signal, e.g. when the vehicle leavesthe roadwhen it is switched on:
- Leaving the vehicle with the lights switched on
- reaching the tank reserve
- driving without a seatbelt
- reaching low temperatures around freezing point
The loudspeaker is replaced via two soldering points in the instrument cluster.
Suitable for the following vehicle models:
- Audi A3 8P year 2003 - 2007
- Seat Altea 5P year 2004 - 2009
- Seat Ibiza 6L year 2002 - 2008
- Skoda Octavia 1U year 2000 - 2010
- VW Fox 5Z year 2005 - 2011
- VW Golf 5 1K year. 2003 - 2007
- VW Golf 6 5K year 2008 - 2012
- VW Golf 7 5G year 2012 - 2017
- VW Passat 3C year 2003 - 2007
- VW Polo 9N year 2001 - 2009
- VW Touran 1T year 2003 - 2007
- VW Transporter T5 7H year 2004 - 2010
Please compare the part number with the original part number before purchasing.
Technical data
Sound pressure level (SPL) |
90 ± 3 dB at 1 kHz at 0.2W /0.1m on baffle, sine wave |
Nominal / maximum power |
0.2 W / 0.4 W |
Impedance |
45 Ω ± 10 % at 1 kHz, 1Vrms |
Resonant frequency (Fo) |
430 Hz ± 15 % at 1 Vrms |
Dimensions |
Φ37.0 x D17.0 mm |
Weight |
9.0 ± 1 g |
